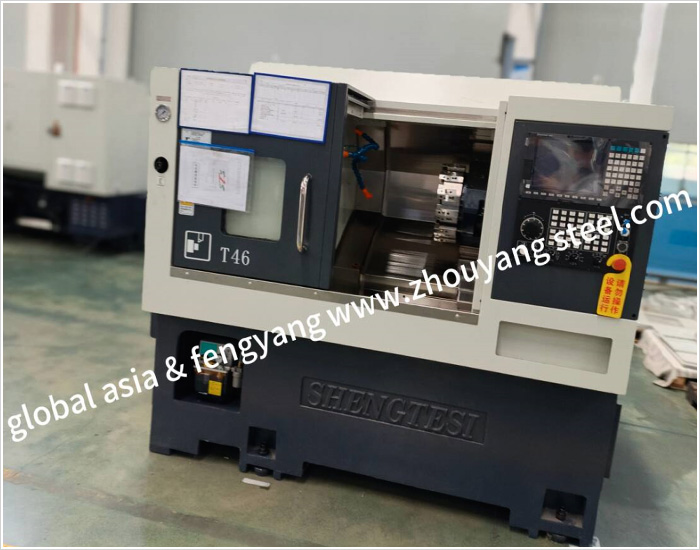

CNC Lathes (CNC Equipment Series) Product Introduction

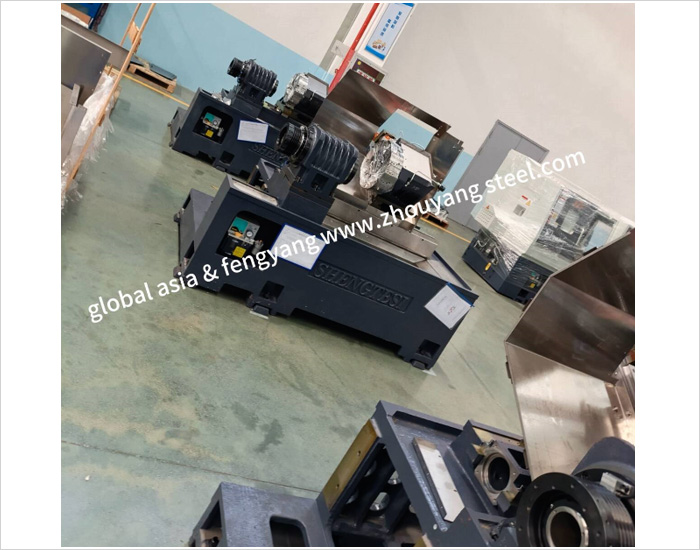

This series includes inclined-bed CNC lathes, turning-milling combination lathes, vertical CNC lathes, 5-axis vertical lathes, dual-spindle models, powered tool turrets, tool holders, dual-turret models, vertical models, 5-axis models, and many other variants. The monolithic cast, high-rigidity bed offers excellent vibration resistance and minimal deformation. The 30° slant bed design facilitates loading, unloading, and chip removal; it is equipped with a servo-driven turret for fast tool changes. Some models are equipped with a Y-axis, tailstock, dual spindles, and an auxiliary carriage, enabling composite machining operations such as milling, drilling, and tapping; optional auxiliary equipment includes automatic feeders, chip removal systems, and fume extractors; supports a variety of CNC system options and provides one-stop international trade services including model selection, customs clearance, installation and commissioning, training, and after-sales support.

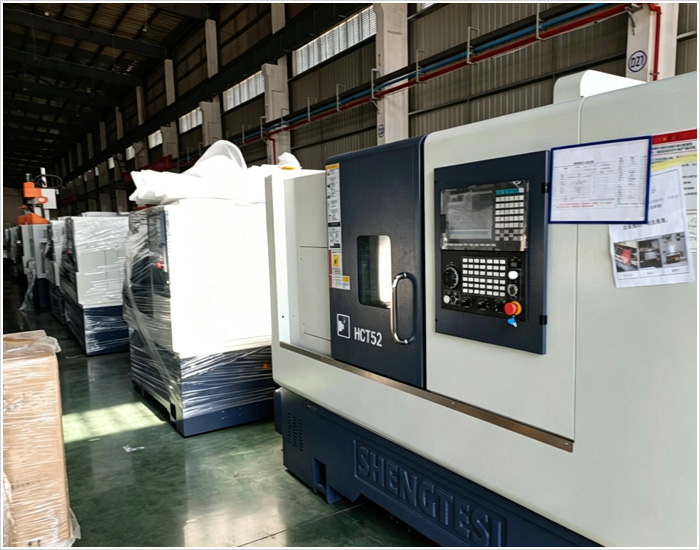

Model List: CTXY-S Dual-Axis, CTXY Belt-Type, Y-Axis Tooling CTXY8 Medium-to-Large Long-Shaft CTX Tower-Type, T-H Frog-Type Disc-Type, HCT Servo Tool Tower, CT8 Large Tooling, H-Press TCT Dual-Tower, CV Vertical Lathe, Precision 70L Lathe, VMX600 5-Axis Lathe, HS Slant-Bed Machining Center
Main Applications
1. Precision metal turning: Various shaft and disc-type parts; capable of performing multiple processes such as turning, milling, drilling, and tapping to achieve flexible production of small batches with a wide variety of products;
2. Components industry: Automotive parts, new energy components, hardware parts, hydraulic components, electromechanical components, and 3C components;
3. Disc-shaped components: Specialized machining of flanges, gear blanks, and other disc-shaped parts;
4. Long shafts and large-sized components: CTXY8 series, with a maximum machining length of up to 2000 mm;
5. Vertical/5-axis models: Large-diameter disc and ring-shaped parts, complex polyhedral parts, and heavy-duty cutting applications;
6. Can be integrated with automatic feeding and chip removal systems to create automated production lines, addressing issues such as labor shortages, low efficiency, and inconsistent precision.
Supported Machining Dimensions
Horizontal Slant-Bed Series
1. Maximum swivel diameter: 400 to 740 mm for disc-type parts.
2. Machining diameter: Traditional disc machining ranges from Φ 350 to 600 mm.
3. Maximum machining length: 120 mm for short-bed models, 500 to 550 mm for traditional models, and 1,200 to 2,000 mm for long-bed models.
4. Bar Stock Machining Range: Bar diameters from Φ 35 to 75 mm.
5. Travel: X-axis 200 to 600 mm; Z-axis 250 to 2000 mm. For models equipped with a Y-axis, the Y-axis travel is ±45 to ±50 mm.
Vertical 5-Axis Models

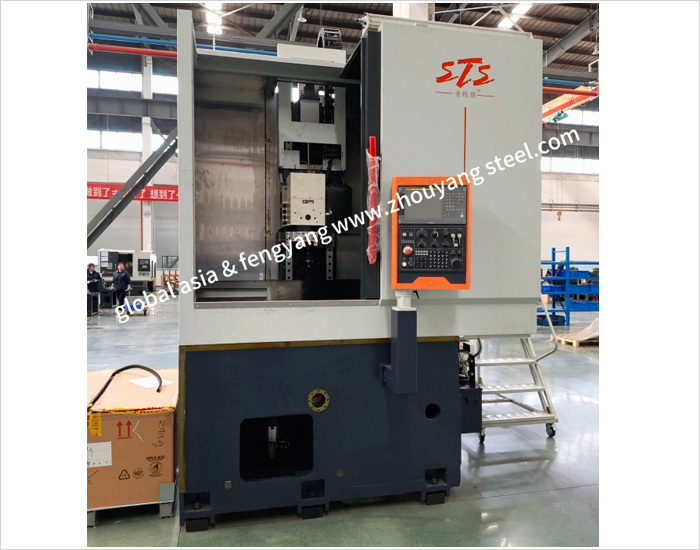

The CVFine 70L vertical lathe can machine large-diameter discs with a maximum cutting height of 450 to 900 mm.

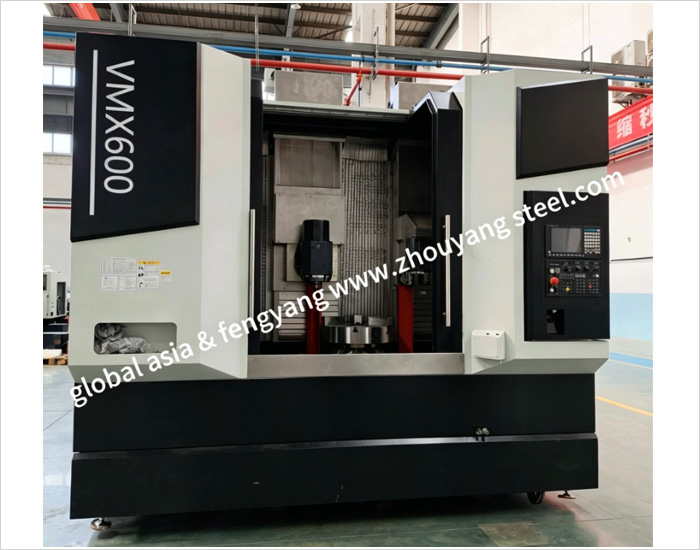

VMX600 5-axis lathe: Capable of 5-axis simultaneous machining of complex polyhedral parts.
