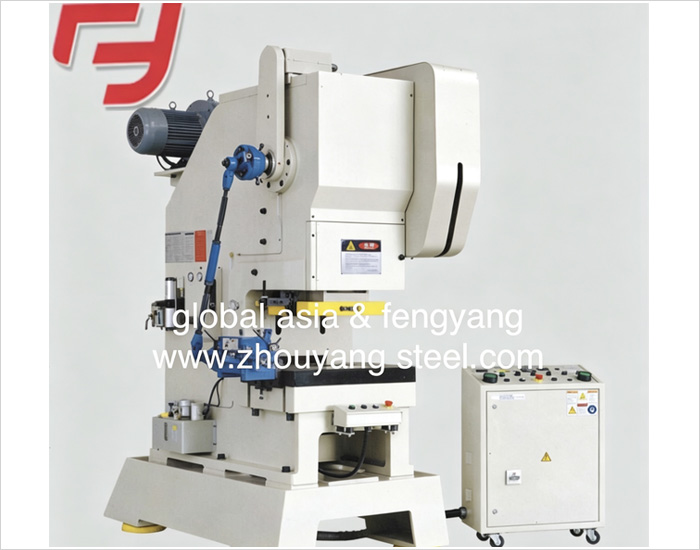

HIGH-SPEED PRECISION PUNCH PRESS (PRESS) PRODUCT INTRODUCTION

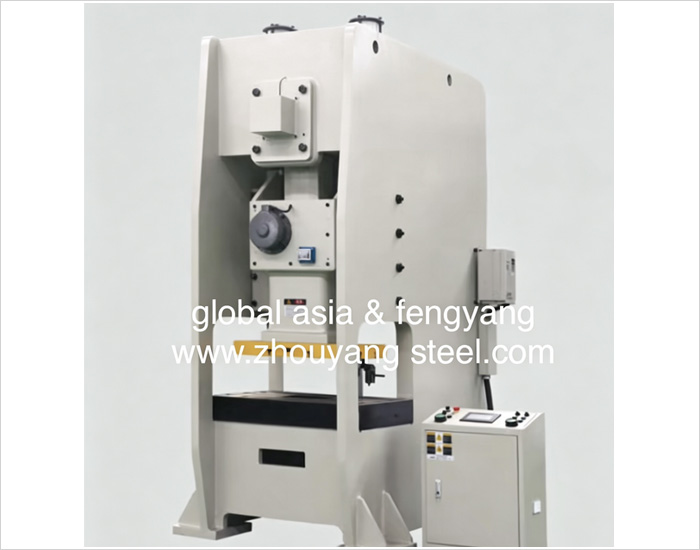

Precision punch presses are metal stamping and forming machines. They come in a full range of models, including open-type, closed-type, semi-closed-type, servo-driven, and toggle-type cold forging machines. Equipped with dry clutches, overload protection, electric die height adjustment, and photoelectric safety protection devices, they can be integrated with feeders and robotic arms to form automated stamping production lines. As a direct manufacturer, we provide pre-sales solutions, installation and commissioning, operator training, and 24-hour after-sales support.
Main Applications: Automotive parts, home appliances, electronics and electrical equipment, hardware products; others (aerospace components, audio equipment, enclosure parts)
Supported Specifications / Size Range
1. Nominal Force: 250 kN (25 metric tons) to 12,500 kN (1,250 metric tons);
2. Slider stroke: Ranges from 30 to 300 mm; servo models allow for freely editable stroke curves;
3. Die mounting height: Maximum die mounting height ranges from 300 to 1,050 mm, with adjustable die height;
4. Worktable: Sizes range from small tables of a few hundred millimeters to large worktables up to 4,000 × 1,800 mm, accommodating stamping dies of various sizes;
5. Throat depth (open-frame models): The maximum throat depth series can reach 460 mm, suitable for stamping large sheet metal;
6. Special models: Elbow-type cold forging presses, specifically designed for cold forging processes to achieve high deformation rates and precision forging; servo presses allow for customizable ram speed and dwell time, enhancing the forming quality of complex parts.
