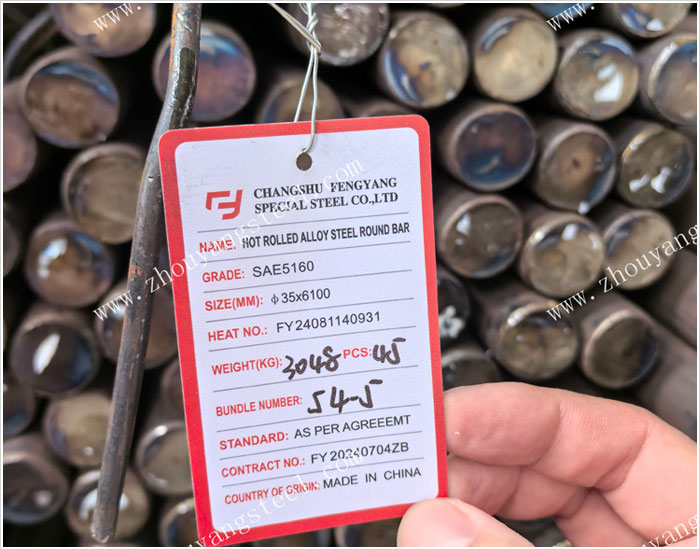

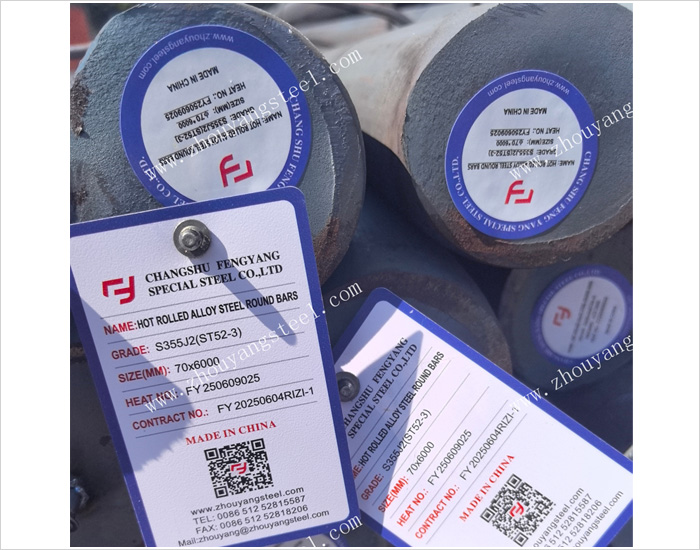

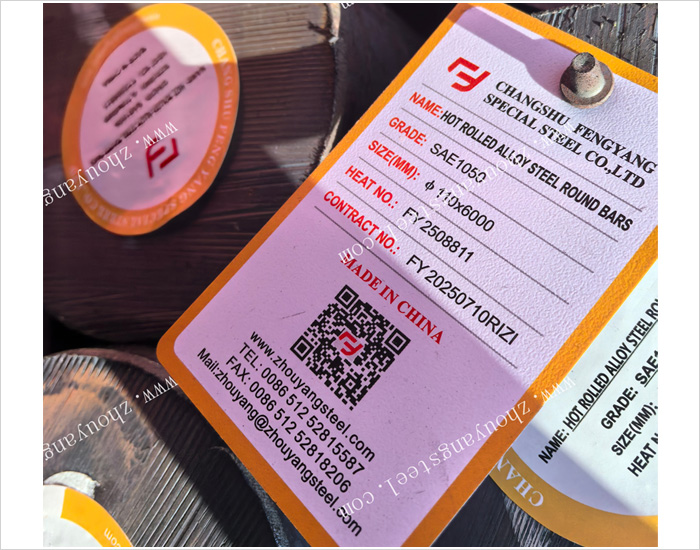

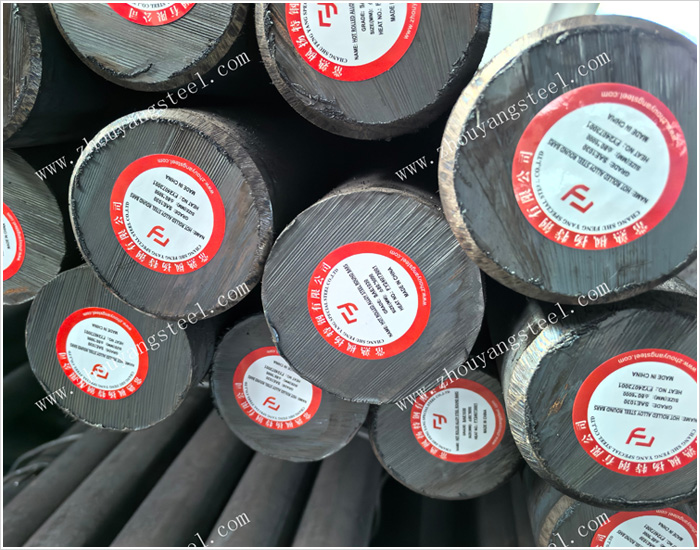

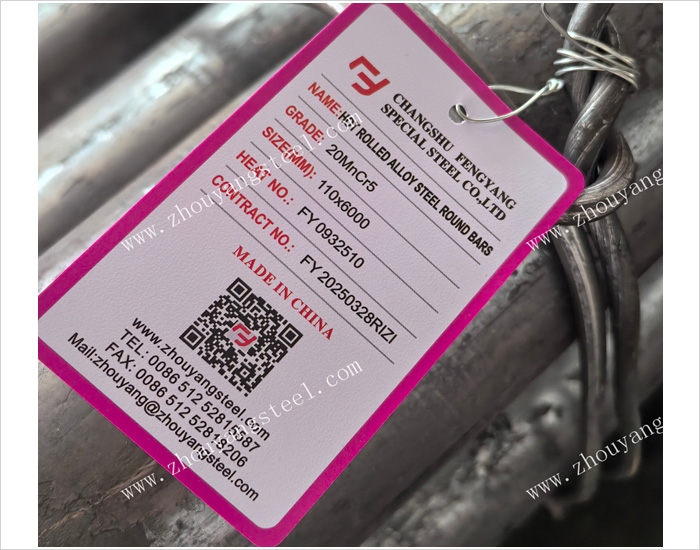

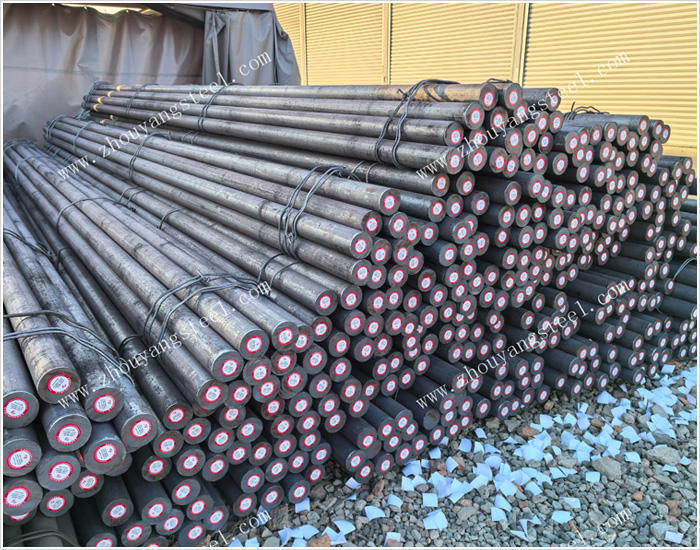

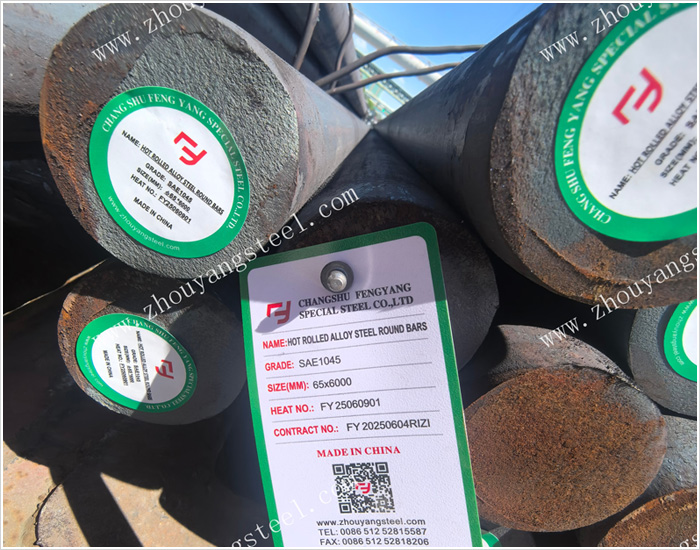

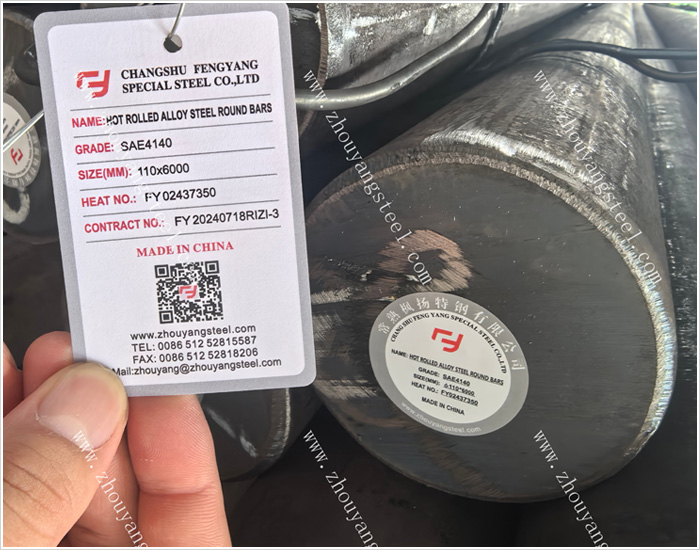

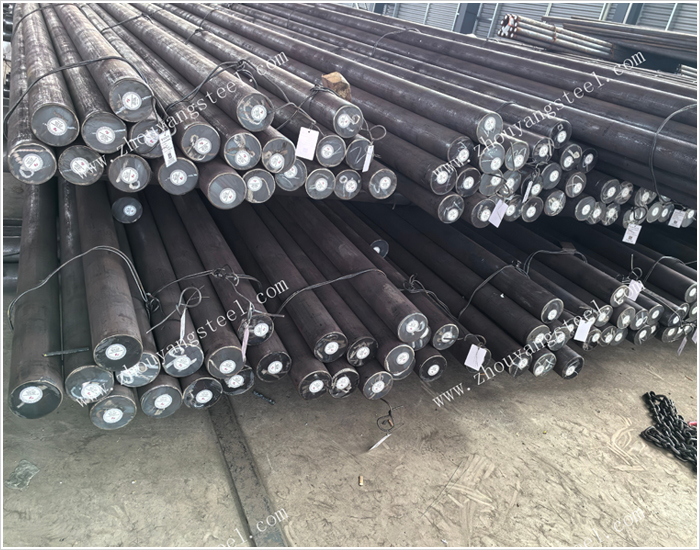

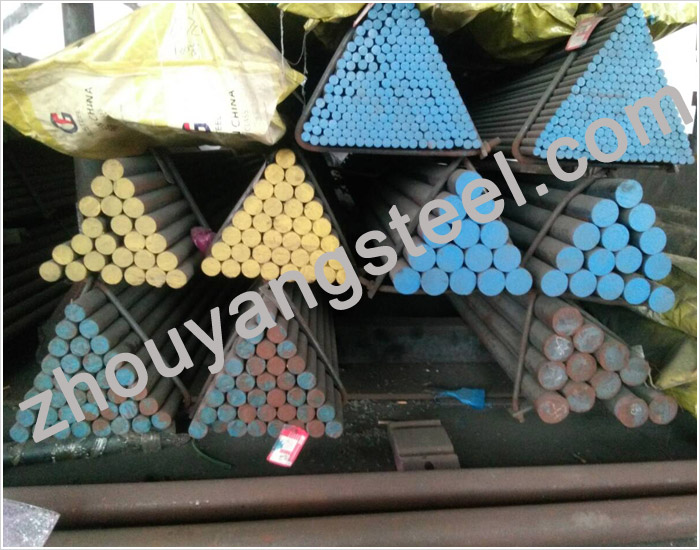

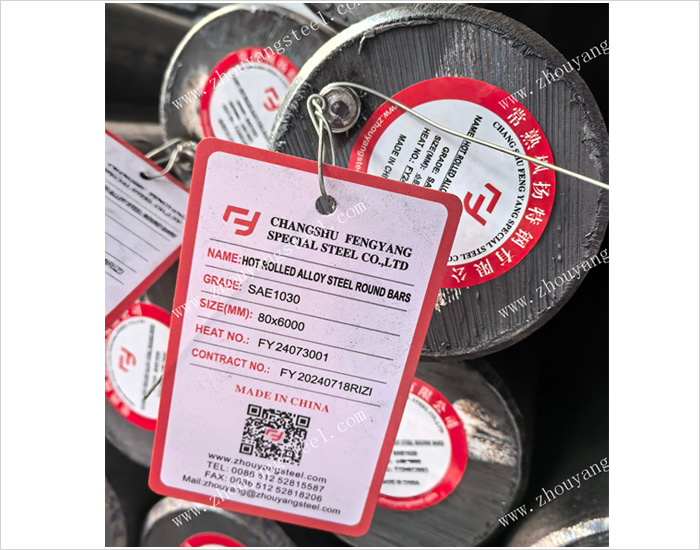

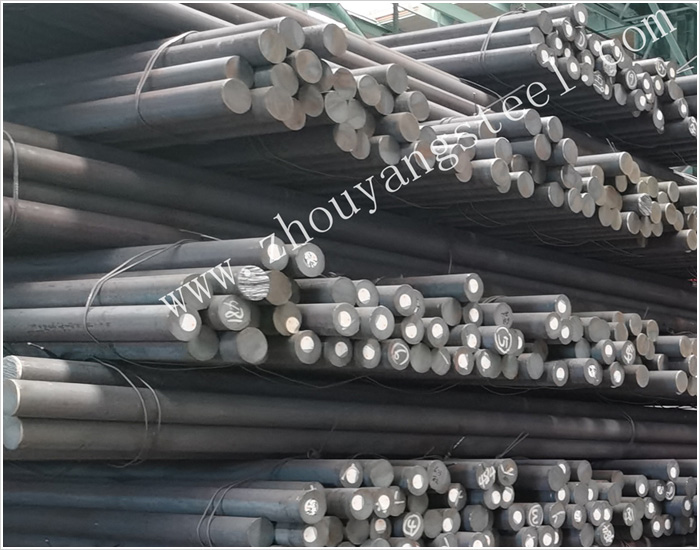

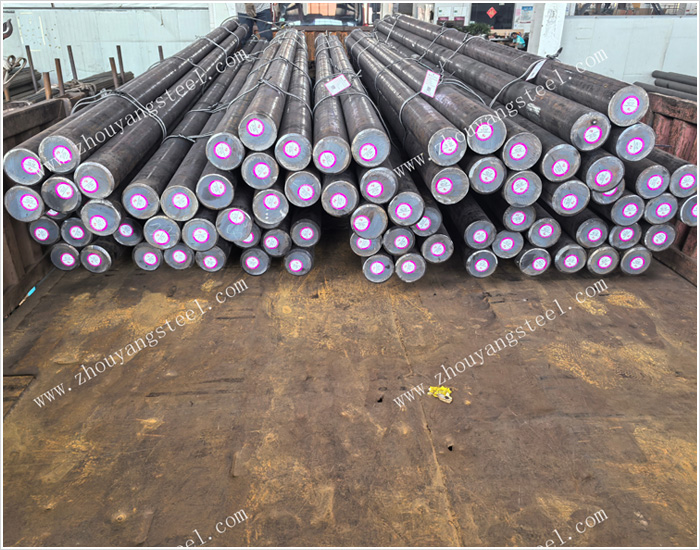

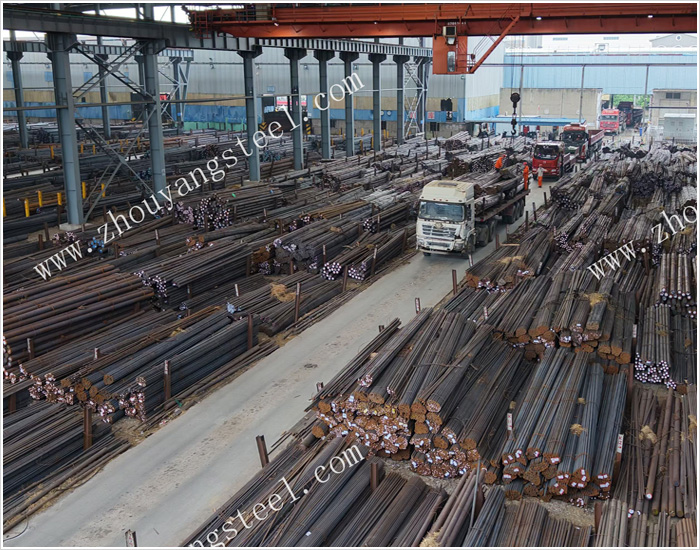

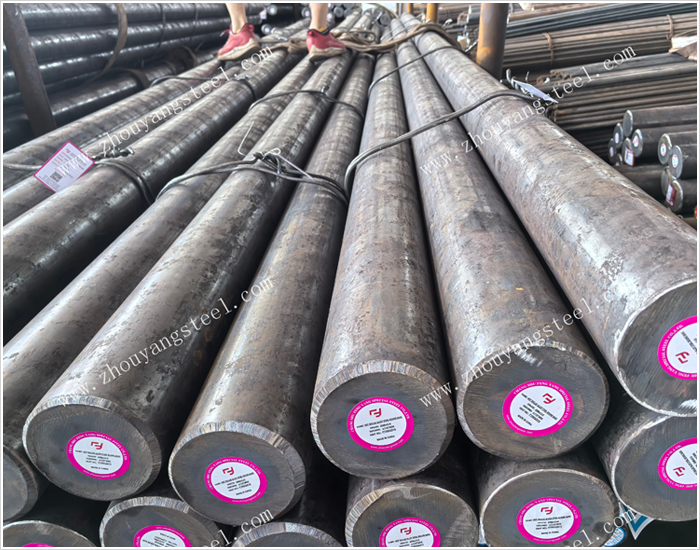

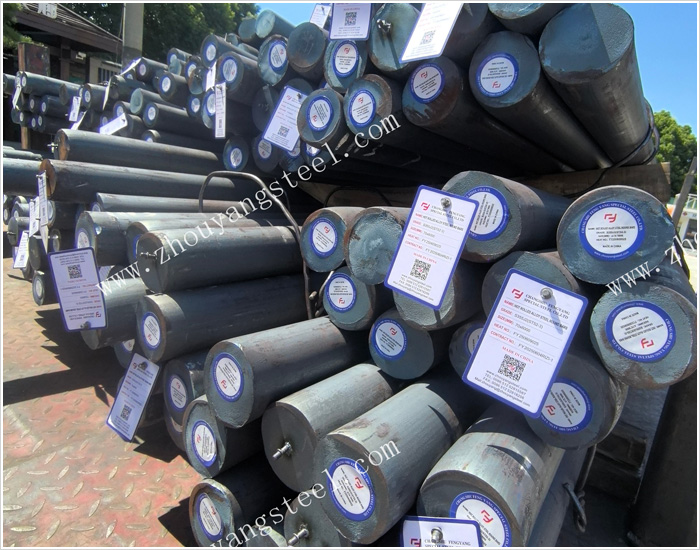

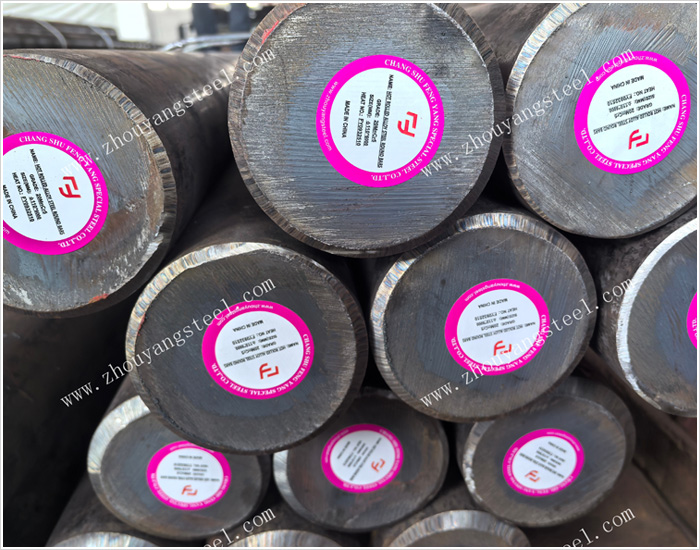

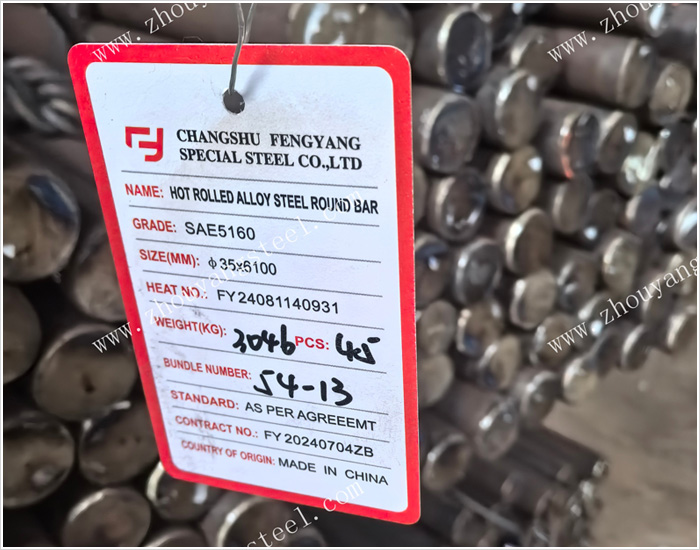

We widely provide all kinds of hot rolled carbon steel and alloy steel with the process of hot rolling and continuous casting. Currently available diameter: 6mm-600mm. Length is customize. The material is focus on high carbon steel like S35C\S45C\S55C, alloy round steel like 42CrMo\35CrMo. Mainly for hardware, machinery, automobile and ships manufacturing industry(providing certificate of classification societies).Other grade steel as follow: 20Cr、40Cr、15CrMo、20CrMo、35CrMo、40CrMo、42CrMo、40CrNiMo、28SiMnVB、30SiMnVB、30MnCrB5、SCM415、SCM420、SCM420、SCM440、20CrNiMo、40CrNiMo、SNCM220、SNCM439、SCr420、SCr440、20X、40X、45X、SAE5120、SAE5140、SAE5145、SCr445、12XM、15XM、20XM、30XM、35XM、38XM、SCM430、SCM435、SAE4118、SAE4130、SAE4135、SAE4140、38CrMoAl、SACM645、E7140、Y12Pb、AC14、SUM22L、SUM24L、12L14、20Cr4、17Cr13-1.7016、41Cr4、15XM、13CrMo44、18CrMo4、25CrMo4、34CrMo4、34CrMo4、41CrAlMo74、20CrMnTi
Grade Comparison And Chemical Composition
|
Steel Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
Cu
|
|
GB
|
ASTM
|
JIS
|
|
20#
|
1020
|
S20C
|
0.17~0.23
|
0.17~0.37
|
0.35~0.65
|
≤0.035
|
≤0.04
|
≤0.25
|
≤0.30
|
≤0.25
|
|
45#
|
1045
|
S45C
|
0.42~0.5
|
0.17~0.37
|
0.5~0.8
|
≤0.035
|
≤0.04
|
≤0.25
|
≤0.25
|
≤0.25
|
|
50#
|
1050
|
S50C
|
0.47~0.55
|
0.17~0.37
|
0.5~0.8
|
≤0.035
|
≤0.04
|
≤0.25
|
≤0.25
|
≤0.25
|
|
55#
|
1055
|
S55C
|
0.52~0.6
|
0.17~0.37
|
0.5~0.8
|
≤0.035
|
≤0.04
|
≤0.25
|
≤0.25
|
≤0.25
|
|
20Cr
|
5120
|
SCr420
|
0.18~0.24
|
0.17~0.37
|
0.5~0.8
|
≤0.035
|
≤0.035
|
0.17~0.37
|
≤0.30
|
≤0.30
|
|
40Cr
|
5140
|
SCr440
|
0.37~0.44
|
0.17~0.37
|
0.5~0.8
|
≤0.035
|
≤0.035
|
0.80~1.10
|
≤0.30
|
≤0.30
|
|
20CrMo
|
4118
|
SCM420
|
0.17~0.24
|
0.17~0.37
|
0.40~0.70
|
≤0.035
|
≤0.035
|
0.80~1.10
|
≤0.30
|
≤0.30
|
|
35CrMo
|
4135
|
SCM435
|
0.32~0.40
|
0.17~0.37
|
0.40~0.70
|
≤0.035
|
≤0.035
|
0.80~1.10
|
≤0.30
|
≤0.30
|
|
42CrMo
|
4140
|
SCM440
|
0.38~0.45
|
0.17/0.37
|
0.5/0.8
|
≤0.035
|
≤0.035
|
0.90~1.20
|
≤0.30
|
≤0.30
|
|
38CrMoA1
|
|
SACM645
|
0.35~0.42
|
0.20~0.45
|
0.30~0.60
|
≤0.035
|
≤0.035
|
1.35~1.65
|
≤0.30
|
≤0.30
|
|
20CrMn
|
5115
|
SMnC420
|
0.17~0.23
|
0.17~0.37
|
0.90~1.20
|
≤0.035
|
≤0.035
|
0.90~1.20
|
≤0.30
|
≤0.30
|
|
20CrNiMo
|
8720
|
SNCM220
|
0.17~0.23
|
0.20~0.30
|
0.60~0.95
|
≤0.035
|
≤0.035
|
0.40~0.70
|
Ni:0.35~0.75
|
|
Cr12Mo1
|
D2
|
SKD11
|
1.4/1.6
|
≤0.6
|
≤0.6
|
Cr:11.0-13.0; Mo:0.8-1.2; V: ≤1.1
|
|
|
 |
| round steel 06 |
 |
|
|
 |
| Round bar 07 |
|
|
|
 |
| Round bar 08 |
|
|
|
 |
| Round bar 09 |
|
|
|
|
|
|
|
|
|
 |
| Round bar 10 |
|
|
|
 |
| Round bar 11 |
|
|
|
 |
| Round bar 12 |
|
|
|
 |
| Round bar 13 |
|
|
|
|
|
|
|
|
|
 |
| Round bar 14 |
|
|
|
 |
| Round bar 15 |
|
|
|
 |
| Round bar 16 |
|
|
|
 |
| round bar 17 |
|
|
|
|
|
|
|
|
|
 |
| round bar 18 |
|
|
|
 |
| round bar 19 |
|
|
|
 |
| 冷拉圆钢S45C |
|
|
|
 |
| 冷拉圆钢S45C |
|
|
|
|
|
|
|
|
|
 |
| 冷拉圆钢S45C |
|
|
|
 |
| 冷拉圆钢 |
|
|
|
 |
| 圆钢20 |
|
|
|
 |
| 圆钢21 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢22 |
|
|
|
 |
| 圆钢23 |
|
|
|
 |
| 圆钢24 |
|
|
|
 |
| 圆钢25 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢26 |
|
|
|
 |
| 圆钢27 |
|
|
|
 |

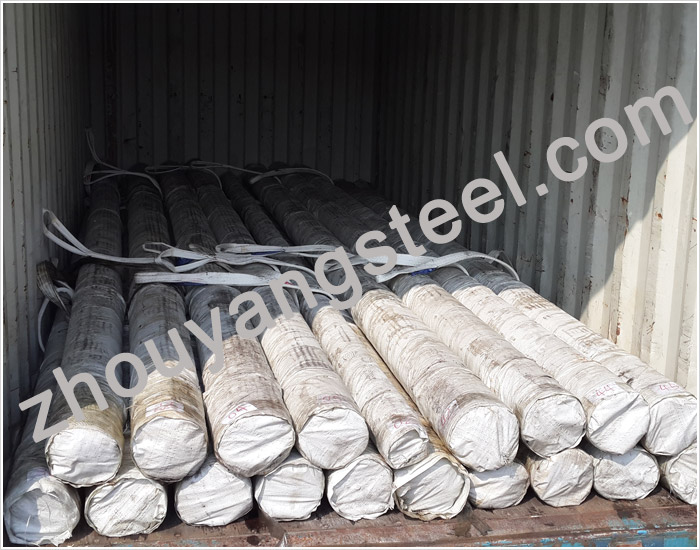

| 包装 |
|
|
|
 |
| 圆钢28 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢29 |
|
|
|
 |
| 圆钢30 |
|
|
|
 |
| 圆钢31 |
|
|
|
 |
| 圆钢32 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢33 |
|
|
|
 |
| 圆钢34 |
|
|
|
 |
| 圆钢35 |
|
|
|
 |
| 圆钢36 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢37 |
|
|
|
 |
| 圆钢38 |
|
|
|
 |
| 圆钢39 |
|
|
|
 |
| 圆钢40 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢41 |
|
|
|
 |
| 圆钢42 |
|
|
|
 |
| 圆钢43 |
|
|
|
 |
| 圆钢44 |
|
|
|
|
|
|
|
|
|
 |
| 圆钢45 |
|
|
|
 |
| 圆钢46 |
|
|
|
 |
| 圆钢47 |
|
|
|
 |
| 圆钢48 |
|
|
|
|
|
|
|
|
|
|
|
Forging is a process of using forging machines to pressure the steel billet and produce the plastic deformation to get the certain mechanical properties, shape and size. Forging and pressing are two main parts. This process can eliminate the weakness of loose cast condition in smelting process and optimize the microstructure. Due to the process of forging saving the whole flow line, the properties of forgings are better than other products in same material.Most of the parts in high load and serious work condition are forgings. In general, the forgings are for transmission shaft or shaft under high torque and load, like marine shafting(providing the certificate of classification societies). Currently, the available size: 80mm-800mm. Main material:20Cr、40Cr、15CrMo、20CrMo、35CrMo、40CrMo、42CrMo、40CrNiMo、28SiMnVB、30SiMnVB、30MnCrB5、SCM415、SCM420、SCM420、SCM440、20CrNiMo、40CrNiMo、SNCM220、SNCM439、SCr420、SCr440、20X、40X、45X、SAE5120、SAE5140、SAE5145、SCr445、12XM、15XM、20XM、30XM、35XM、38XM、SCM430、SCM435、SAE4118、SAE4130、SAE4135、SAE4140、38CrMoAl、SACM645、E7140、Y12Pb、AC14、SUM22L、SUM24L、12L14、20Cr4、17Cr13-1.7016、41Cr4、15XM、13CrMo44、18CrMo4、25CrMo4、34CrMo4、34CrMo4、41CrAlMo74、20CrMnTi
|
|
|
