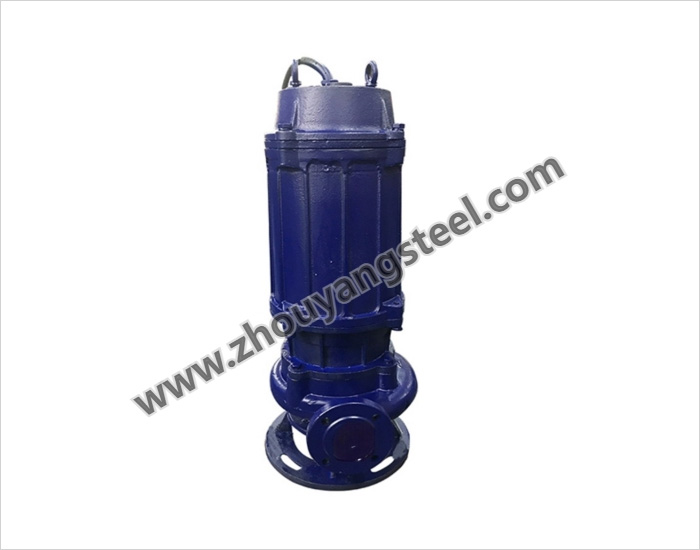

Submersible pump:
Material: cast iron, stainless steel
Performance parameters:
Flow rate: -600m³/h
Head: 6-60m
Power: 0.37-15KW
Diameter: Ф25-Ф250
Temperature ra: Suitable for pumping clean water, sewage with particles, and corrosive media
Wastewater treatment plant drainage systems, municipal engineering, construction sites, etc.
Chemical, petroleum, papermaking, pharmaceutical industries, etc.
Cement plants, steel mills, coal processing plants, etc.

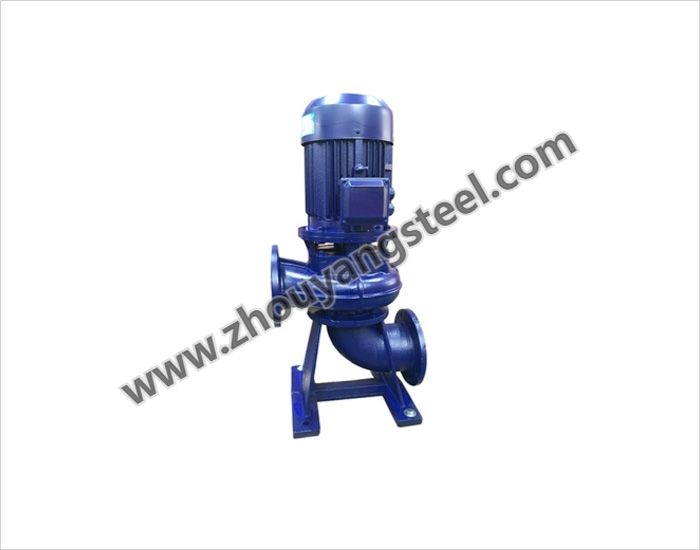

Sewage pump:
Material: cast iron, stainless steel
Performance parameters:
Flow rate：7-600m³/h
Head: 6-60m
Power: 0.75-75KW
Diameter: Ф25-Ф250
Temperature ra: Suitable for municipal sewage engineering, pond aquaculture, light industry, papermaking, textile, food, chemical industry, etc.

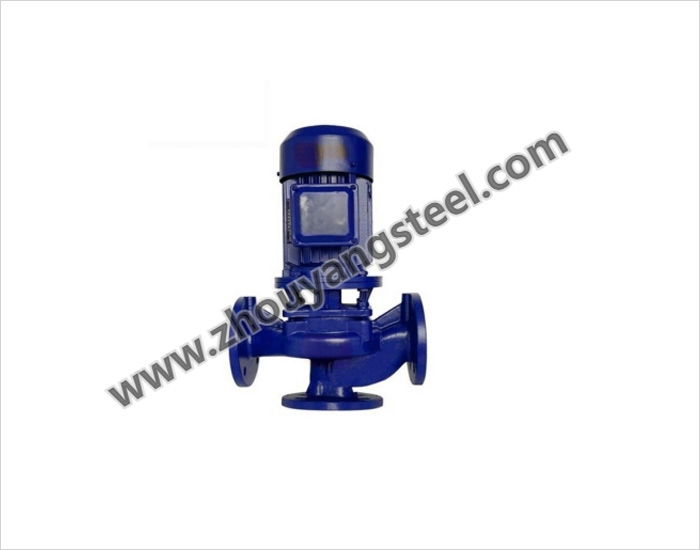

Centrifugal pump:
Material: cast iron, stainless steel
Performance parameters:
Flow rate: 3.5-1440m³/h
Head: 5-65m
Power:0.37-15KW
Diameter: Ф32-Ф400
Temperature range: -15℃—+110℃
Applications: Suitable for conveying flammable chemical liquids, gasoline, kerosene, diesel and other petroleum products

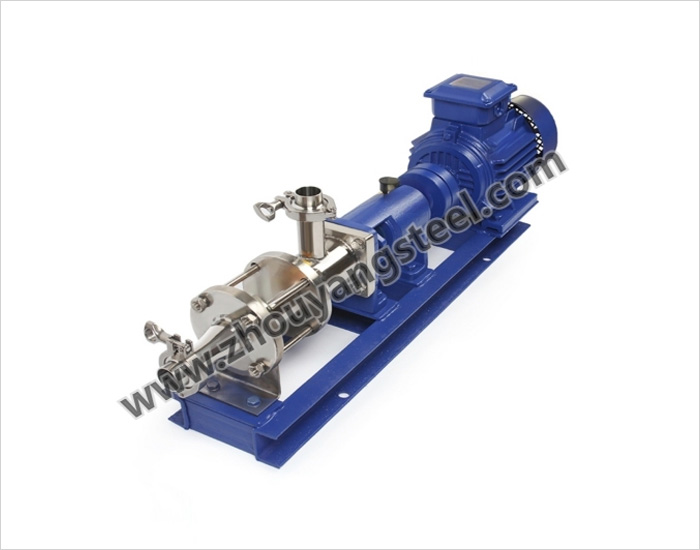

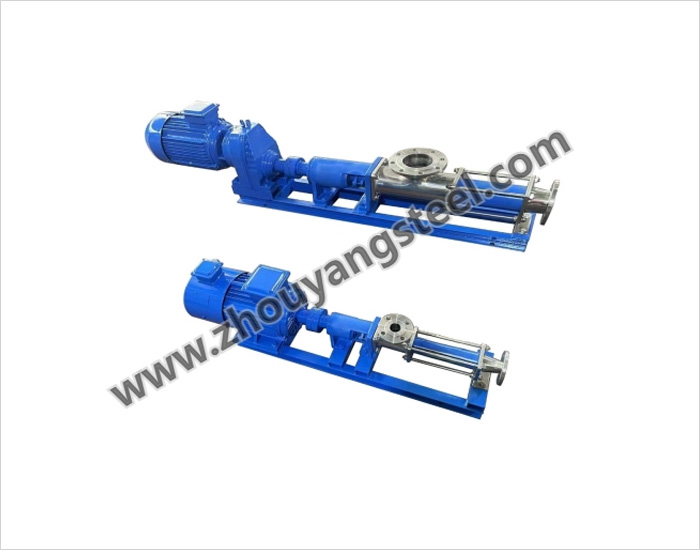

Screw pump:
Material: cast iron, stainless steel
Performance parameters:
Flow rate: 0.8-150m³/h
Head: 6-60m
Power: 0.75-37KW
Diameter: Ф25-Ф250
Temperature range: -15℃—+150℃
Applications:
Petroleum industry: Heavy oil transportation, oil-gas mixed transportation, oil-water separation and waste oil recovery systems
Chemical and pharmaceutical industries: Various pastes, emulsions, suspensions
Mineral engineering: Production equipment for titanium dioxide, kaolin, calcium carbonate, etc.
Food industry: Dairy products, fruit juice, fruit puree, vegetable paste, beer

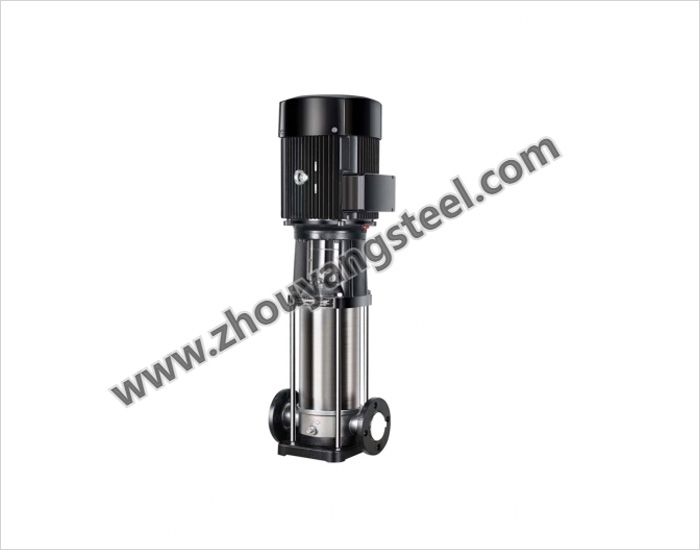

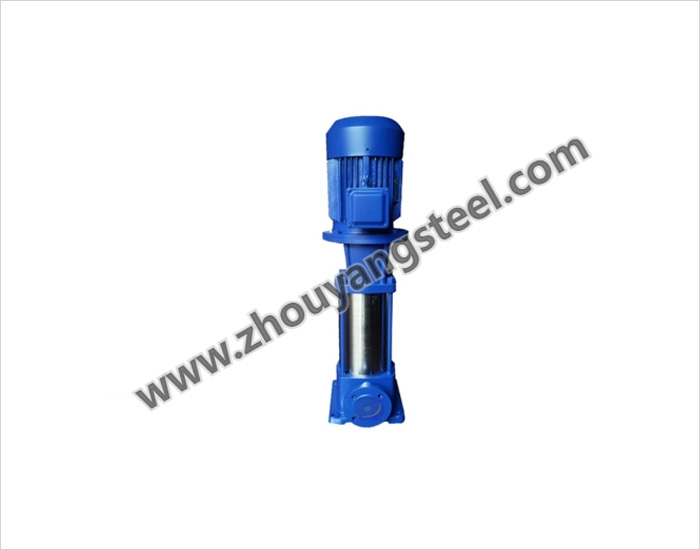

Multistage pump:
Material: cast iron, stainless steel
Performance parameters:
Flow rate: 1-22m³/h
Head: 6-232m
Power: 0.37-15KW
Diameter: Ф25-Ф50
Temperature range: -15℃—+120℃
Applications:
Thin, clean, non-flammable and non-explosive media free of solid particles or fibers
Such as mineral water, softened water, purified water, clean oil or other light chemical media
The main material of the pump is stainless steel, capable of pumping mildly corrosive media
Metering pump:
Material: cast iron, stainless steel
Performance parameters:
Flow rate range: 0-32L/H
Pressure range: 0-1.0MPA
Motor power: 60W、220V/380V、50/60Hz
Drive system: Two-phase, three-phase standard motor or explosion-proof motor
Scope of application: Petroleum, chemical, electric power, metallurgy, mining, shipbuilding, light industry, agriculture, national defense and other industries
Optional 220V, 380V DC motor, ambient temperature -30℃ to 60℃

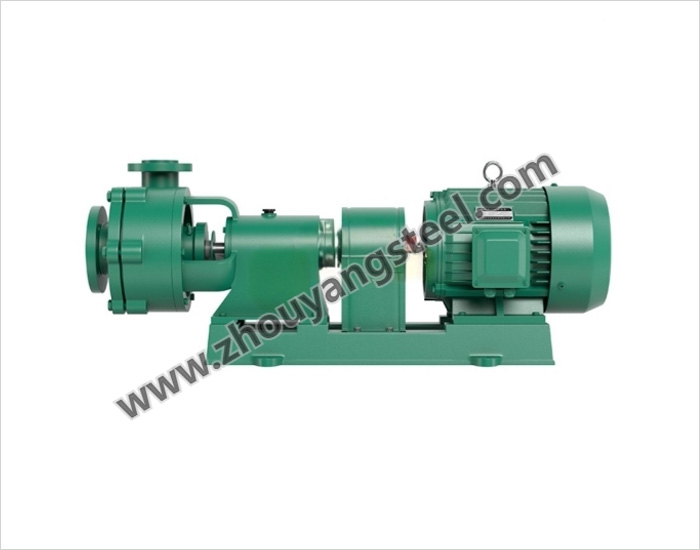

Chemical pump:
Pump materials: Optional stainless steel 304, stainless steel 316, and duplex steel
Conveys various corrosive or non-contaminable water-like media at temperatures ranging from -20℃ to 105℃
|
|
 |

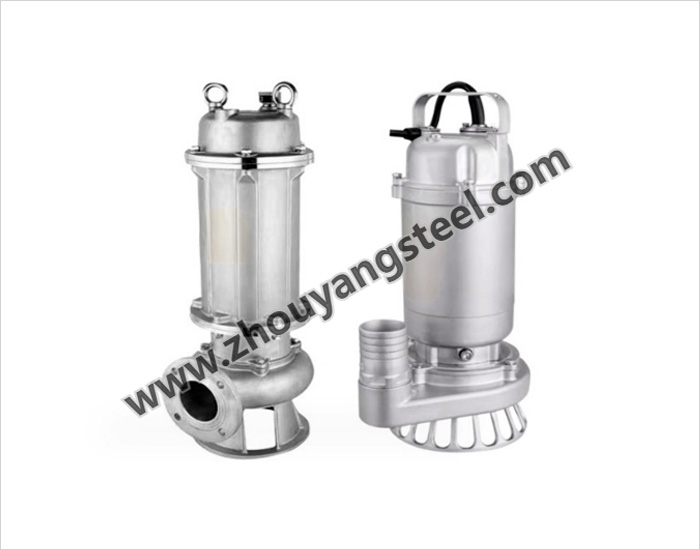

| Submersible pump 01 |
 |
|
|
 |
| Submersible pump 02 |
|
|
|
 |
| Sewage pump 01 |
|
|
|
 |
| Sewage pump 02 |
|
|
|
|
|
|
|
|
|
 |

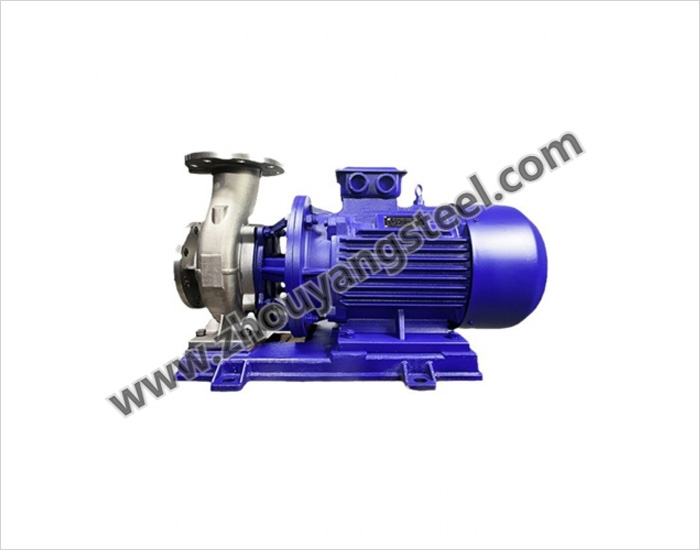

| Centrifugal pump 01 |
|
|
|
 |
| Centrifugal pump 02 |
|
|
|
 |
| Screw pump 01 |
|
|
|
 |
| Screw pump 02 |
|
|
|
|
|
|
|
|
|
 |

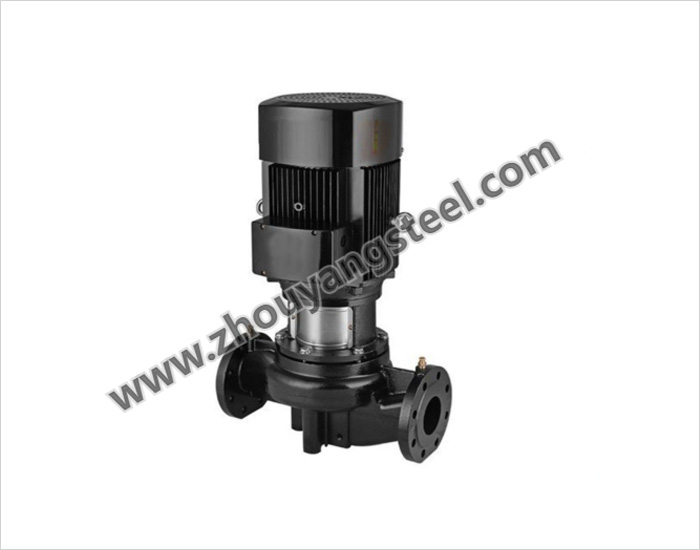

| Multistage pump 01 |
|
|
|
 |
| Multistage pump 02 |
|
|
|
 |

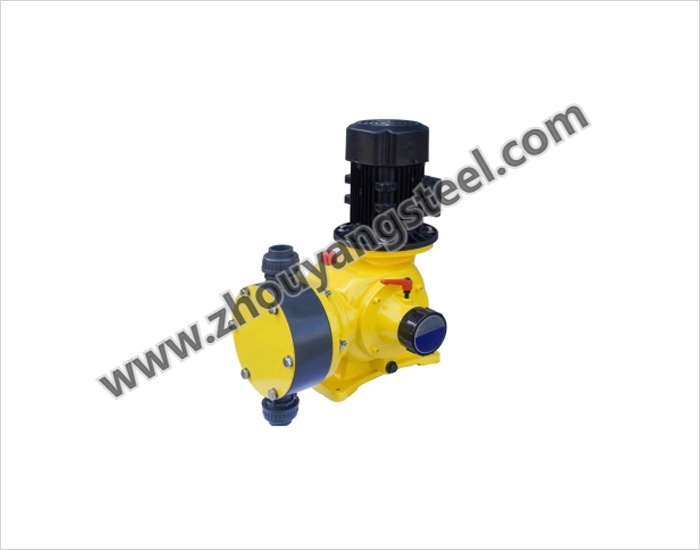

| Metering pump 01 |
|
|
|
 |

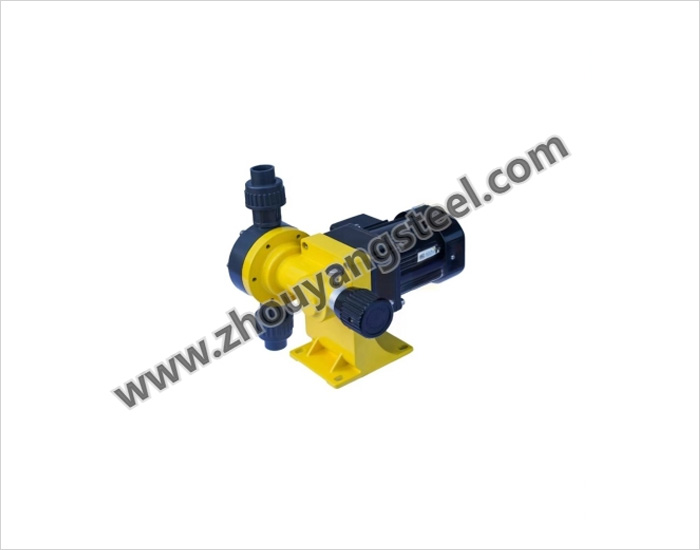

| Metering pump 02 |
|
|
|
|
|
|
|
|
|
 |

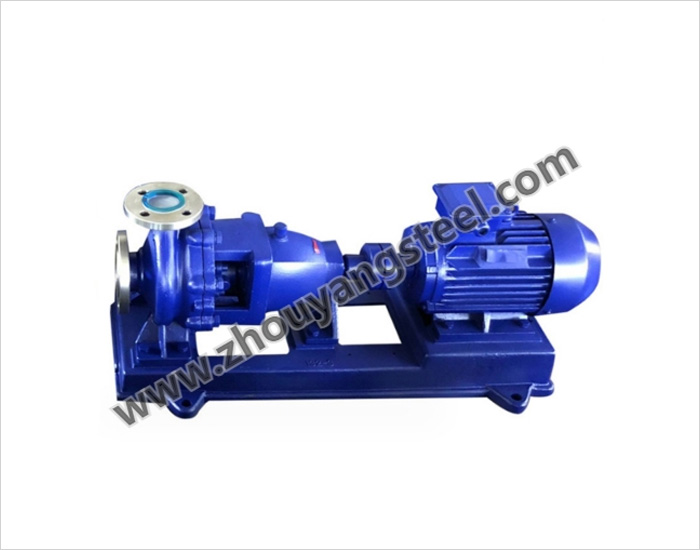

| Chemical pump 01 |
|
|
|
 |
| Chemical pump 02 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
